stefani s

Description

stefani s

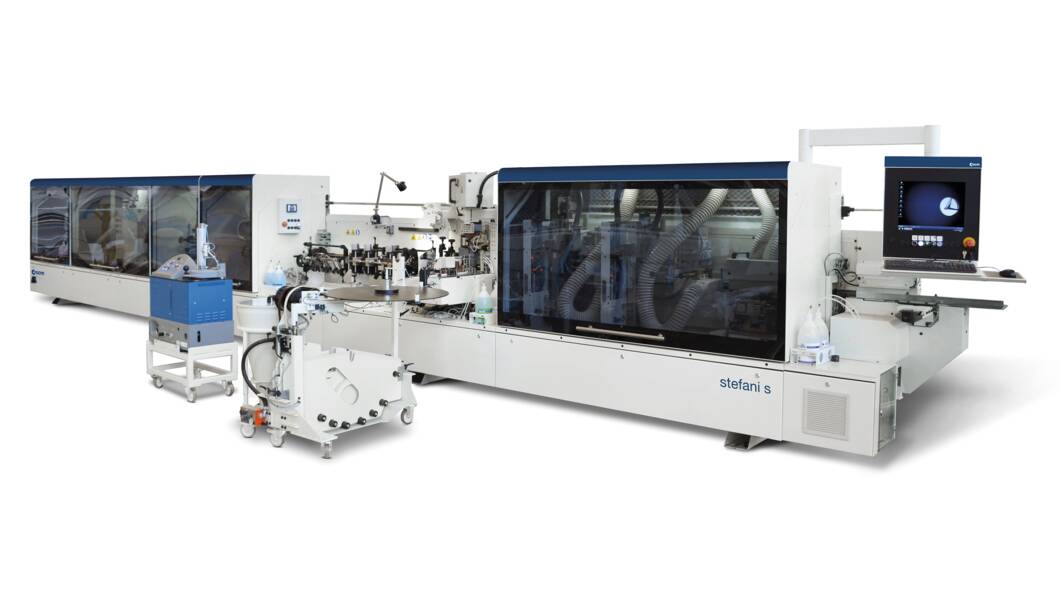

stefani s is the single-sided edgebanding machine designed for medium-and large-scale firms and leader in the market, is characterized by its precise machining operations, reliability and efficiency. Suitable for machining edges in plastic material, both traditional and modern, wood and laminate strips, even aluminium edges. It offers a complete range of machining operations for diversified industrial production at reduced costs.

Discover more about J-SHAPE: the leading softforming solution

Advantages

MODULARITY
stefani s can be “tailor-made” for the individual customer, according to his own qualitative and performance requirements, for both the traditional machining of straight panels and soft-forming machining.

INTEGRATION
stefani s can be used in edgebanding cells, with automations for the panel return to the operator, with devices for manual or semi-automatic panel insertion, and with devices for automatic panel loading. It can also be inserted in a line with other machines.

TECHNOLOGY
stefani s guarantees the highest quality thanks to the best technology available in every area of the machine. AirFusion+, SLIM LINE, SGP glue pot, ZERO LOCK, NESTING LOCK, are just some of the exclusive technologies to guarantee a finished product at the top.

Technical data

Max working speed
m/min
25 (30 opt)
Coil edge thickness
mm
0.3-3
Pre-cut strip thickness
mm
0.4-1
Solid wood thickness
mm
25
Panel thickness
mm
10 – 60 (80 opt)
PANEL DIMENSIONS WITH COIL EDGE
Min/max panel length
mm
135 (125 opt)-3200
Min/max panel width
mm
95 (55 opt)-1200
Pneumatic system
MPa
6
Technology for edge application
EVA, PUR, EVA+PUR
AirFusion
SLIM LINE
TYPE OF EDGE
EXAMPLE OF APPLICATION
MAX THICKNESS
Paper
Raw / prepainted
0,6 mm
Plastic in coil
ABS, PVC, PP (with/without film)
PMMA (polished or rough to polish/smooth)
3 mm
Alluminium
Shine/ Satin
3 mm
Pre-cut strips
Veneer, PC, Unicolor
1 mm
Solid wood
Raw / polished / drawn
25 mm

Case History

Simon Agencement

Fratelli Minotti

Qumei Furniture Group

Video

Documentation

tona bathroom_EN Download
going soft on edges Download
pulls mastered Download
utopian edges Download
j-shape_EN Download
stefani s_EN Download
slimline_EN Download
flexible production_EN Download
