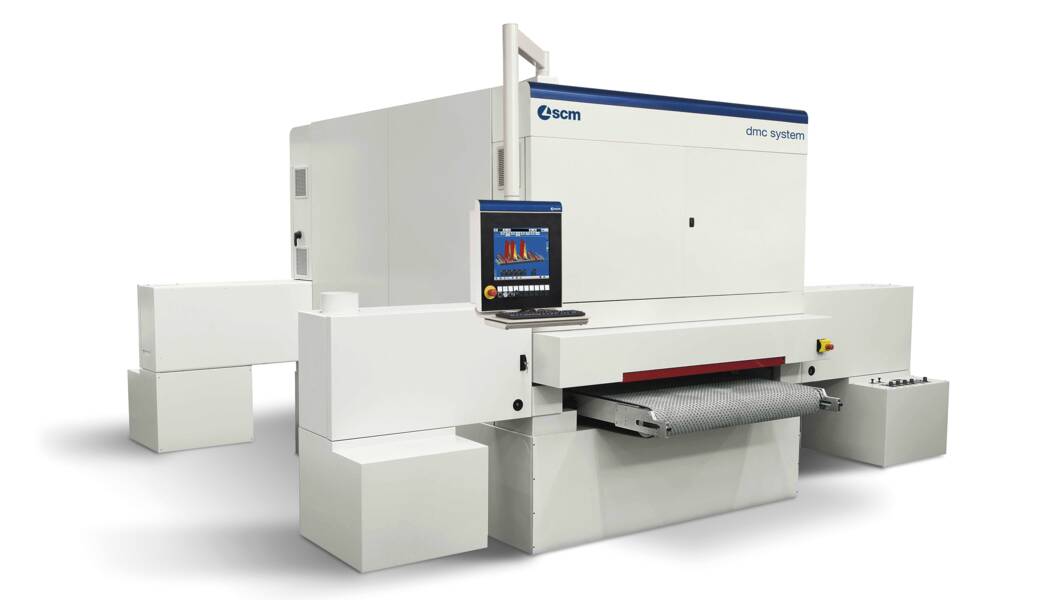

dmc system t5 1350

Equipped with the most innovative technologies developed by DMC, it guarantees excellent results in any smoothing and finishing operation. Designed to meet the production needs of medium- and large-scale firms, System T5 can be used both as a stand-alone machine and incorporated in automatic production lines.

Main equipment

  • Crossbelt units fitted with 9500 mm sanding belts
  • Contact roller unit with 400 mm diameter roller
  • Superfinishing units with “EPICS” electronic sectional pad and chevron belt
  • Patented “PWM-3” system for the automatic adjustment of the multiple working pressures of “EPICS” pads
  • Unique planetary unit (patented), for multi directional sanding
  • Vacuum hold-down table for small pieces processing, with electric fan embedded in the machine frame
  • Constant pass-line from the floor, for integration in automated production lines
  • Total management of the machine through “Hydra PC” control panel with 17” touch-screen
Advantages

  • Extremely uniform, high quality surface finishes, thanks to the multidirectional action of the multifunctional “Planetario” working unit.
  • Improved finish quality and a longer lifespan for the abrasive belts of the transversal unit, thanks to the long belt (9,500mm) that ensures better cooling and less clogging due to dust.
  • Extremely easy and safe machine use, thanks to the intuitive software interface of the “Hydra” range (ideal even for the less experienced operator).
Technical data

Working width mm 1350
Min/max working thickness (with fixed table) mm   3-170
Cross sanding belt length mm 9500
Longitudinal sanding belt length mm 3250
Constant pass-line mm 900







Case History

Tino Sana

Solomon Wu

Video

Documentation

dmc system t_EN Download
