sergiani gs

Categories: ,

Description

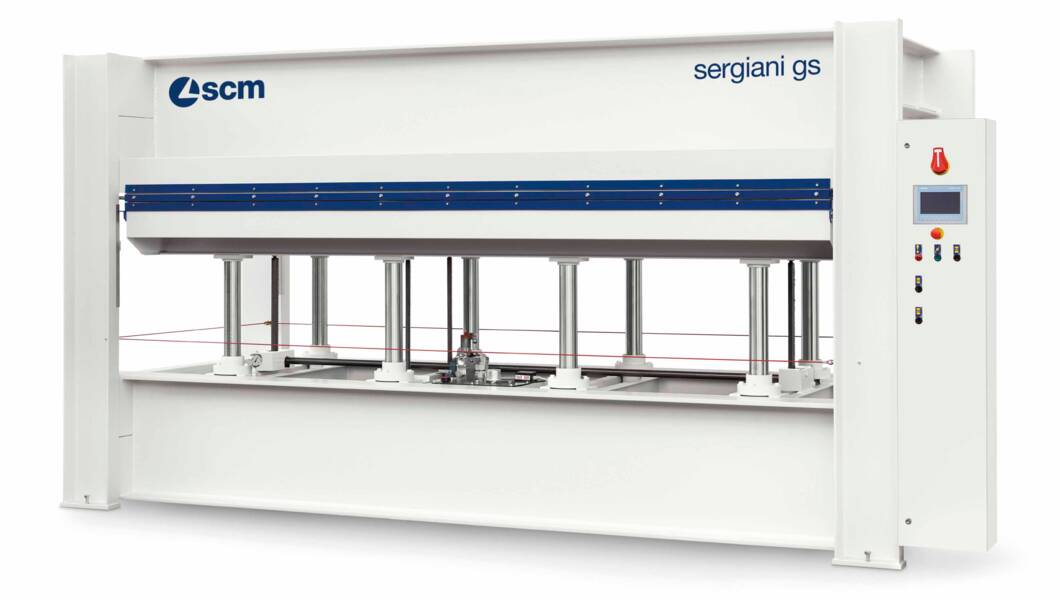

sergiani gs

Press with electronic control and manual loading/unloading: the unique solutions and the utmost precision of the mechanical machining operations ensure high surface and gluing quality of the product being pressed. Highly versatile, it can be used for veneered panels, hollow-core doors and multi-layered panels. Available in numerous versions that can be configured with a vast range of accessories to meet all types of pressing requirements.

Advantages

Structure quality
The sturdy structure has been engineered with a high safety coefficient to guarantee the highest level of resistance and rigidity in each processing phase.

Hydraulic cylinders
The steel rod is chromed with a thick layer and rectified, all gaskets are high resistance to guarantee long lifetime and perfect seal.

Control panel with siemens colour touch screen
The new control panel is equipped with a software that allows to automatically calculate the hydraulic pressure, manage the heating system, carry out a complete diagnostic, program and save all working parameters.

Technical data

gs 4 /20             4 cylinders / 20 ton. –    platens 2500 x 1300 mm
gs 4 / 60  4 cylinders / 60 ton. –    platens  2500×1300 mm
gs 6 / 30  6 cylinders / 30 ton. –    platens 3000×1300 mm
gs 6 / 90  6 cylinders / 90 ton. –    platens  2500 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens  2500 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens  2500 x 1600 mm
gs 6 / 70 6 cylinders / 70 ton. –    platens  3000 x 1300 mm
gs 6 / 90 6 cylinders / 90 ton. –    platens  3000 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens 3000 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens  3100 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens  3000 x 1400 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens  3100 x 1600 mm
gs 6 / 90 6 cylinders / 90 ton. –    platens 3500 x 1300 mm
gs 6 / 120 6 cylinders / 120 ton. –  platens  3500 x 1300 mm
gs 8 / 160 8 cylinders / 160 ton. –  platens  3000 x 1300 mm
gs 8 / 160 8 cylinders / 160 ton. –  platens  3100 x 1300 mm
gs 8/ 160 8 cylinders / 160 ton. –  platens  3100 x 1600 mm
gs 8/ 110 8 cylinders / 110 ton. –  platens 3500 x 1300 mm
gs 8/ 160 8 cylinders / 160 ton. –  platens  3500 x 1300 mm
gs 8/ 160 8 cylinders / 160 ton. –  platens 3800 x 1600 mm
gs 10/ 200 10 cylinders / 200 ton. – platens  3500 x 1300 mm
gs 10/ 200 10 cylinders / 200 ton. – platens  3800 x 1600 mm
Type of platens PA  Assembled  –  PM  Solid –  PE  Electric
Heating BA  Electrical water boiler  –  BO  Electrical oil boiler –  PE Electrical platens





Video

Documentation

sergiani gs – ITA Download
sergiani gs – ENG Download
