morbidelli m100/200f

Categories: ,

Description

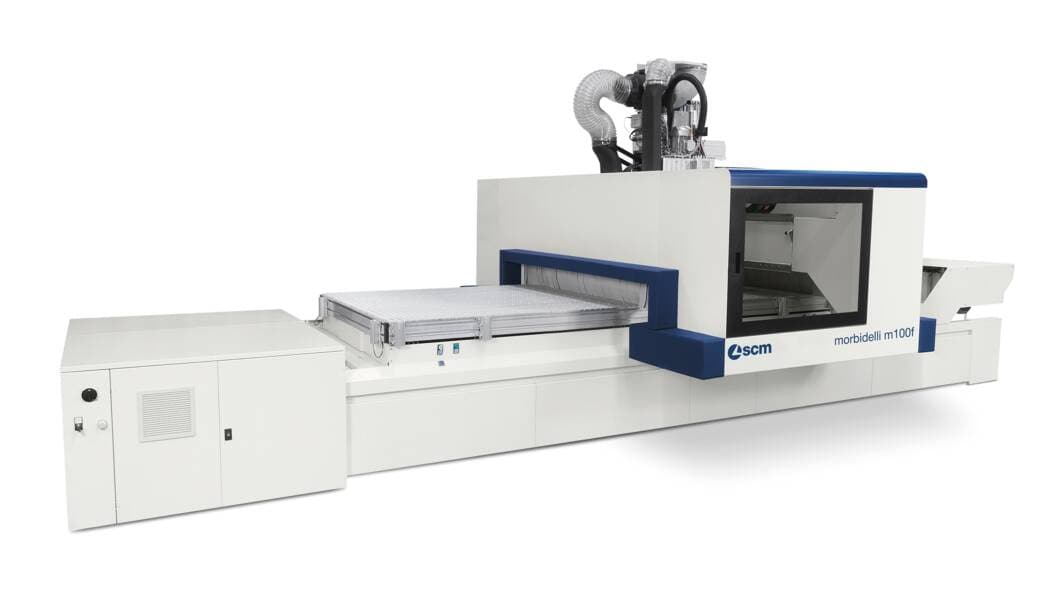

morbidelli m100/200f

This highly modular machining centre provides answers to all the problems associated with woodworking and with advanced materials processing.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.

Advantages

FREEDOM AT 360°:
ALL FREEDOM

Optimizing the space within your factory thanks to the ProSpace solution.
Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.

SUPERIOR QUALITY:
ALL TOP QUALITY

Unmatched finishing thanks to the JQX (Just Quality eXtreme)
5-axis direct-driven spindle head which ensures the total absence of vibrations even with huge material removal at high speed and with the high-performance drilling heads with RO.AX (Rotoaxial spindle technology) spindles and rotation speed up to 8000 rpm.

FASTER THAN ANYONE ELSE:
ALL FASTER

60% time saving in drilling cycles thanks to the rapid working/cycle time and devices that reduce the idle times, as the FAST14 tool changer which takes less than 15” for the tool change.

ENDLESS MACHINING TYPES:
ALL FLEXIBLE

The machine can cope with all types of materials: from wood to plastic, from panel to the single element, from a kitchen door to a window, the configured solution for all your needs and your investment plan.
The unit can accommodate up to four machining units and the aluminium multi-function work table is designed to maintain a perfect planarity over time; it is ideal also for nesting machining.

Technical data

m100 f m200 f
Working areas
X-Y axes dimensions mm 3110×1320
3710×1320
5510×1320
3110×1620
3710×1620
5510×1620
3110×1620
3710×1620
5510×1620
Axes
Vectorial speed X-Y axes m/min 56 (ProSpace)
78 (ProSpeed)
56 (ProSpace)
78 (ProSpeed)
Z axis panel passage mm 180 250
Routing unit
Motor power (max.) kW (hp) 15 (20,5) 15 (20,5)
Rotation speed (max.) rpm 24000 24000
Available tools on tool changer (max.) places 44 60
Drilling unit
Independent vertical spindles (max.) n. 21 21
Independent horizontal spindles (max.) n. 12 12
Rotation speed (max.) rpm 8000 8000
Integrated blade in X, diameter mm 125 125
0-90° blade unit
Motor power (max.) kW (hp) 2,2 (3) 2,2 (3)
Rotation speed (max.) rpm 6000 6000
Auxiliary routing unit
Motor power (max.) kW (hp) 4,5 (6) 4,5 (6)
Rotation speed (max.) rpm 18000 18000
Case History

Foxstow

Documentation

author m100/200 Download
