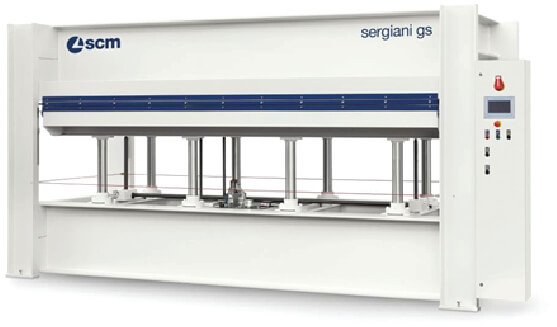

STANDARD MODELS : SCM Sergiani GS-120 Hot Press 120ton 3 opening BRAND SCM , Italy
1. FRAME ENGINEERED WITH A HIGH SAFETY COEFFICIENT
2. HIGH PERFORMANCE SOLUTIONS
3. OPERATOR PANEL WITH COLOR TOUCH-SCREEN DISPLAY SIEMENS
1. The lifting of pressing beam is pneumatic controlled by high precised cylinder with duplicated rod,to realize the function of auto position when working. Rising distance could be adjusted according to the panels thickness,so as to reduce the non-duty movement and improve the cutting efficiency.
2.Saw carriage is driven by servo motor and gear-rack,stable and speedy in running. The auto locating could be realized by the sawing width,so as to reduce the time in free running and improve the working efficiency. The maximum sawing speed is up to 95m/min usless move and 120m/min cutting speed
3.Working table is applied with pneumatic floating balls on top, effectively protect working panel being scratched, and easy to move the panels to the working area.
4.Gripper is controlled by high precised reducer and gear-rack, cutting precision is up to ±0.1mm.
5.Min cutting size is 34*45mm.
6. Gripper amount: 8pcs(can add 2pcs as optional )
7.The main saw and scoring saw applies an independent control system in the lifting. Automatically adjust the lifting height by the cutting thickness, to realize a better sawing effect.
8.based on the PC controlling system, it has a complete operation instruction and troubleshooting guideline, and could be linkup with various software such as opti-cut optimizer, barcode management ect.
|Blade projection mm||80mm|
|Standard clamps||5 Qty|
|Version 33 (opt)||3300mm x 3200mm|
|Motor power (S6 -40%) - 50hz (star-delta start)(KW)||7 (9) (11)|
|Rotating speed – 50 hz (rpm)||4650|
