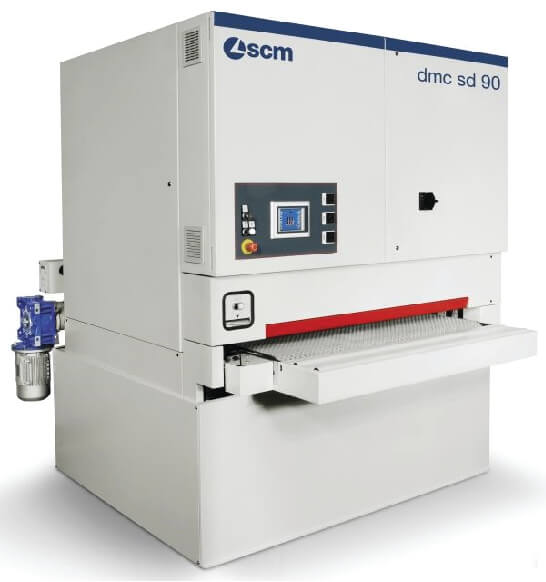

SCM DMC SD90
STANDARD MODELS : SCM DMC SD90 BRAND SCM , Italy
GENERAL FEATURES: Base and workingtable * steel structure with electric cabinet on the machine front * sanding belts introduction from the machine left side * powered adjustment of worktable thickness * main motors positioned inside the base Emergency and safety devices * automatic brake for rapid shutdown of the operating group * hand-safety emergency device in the infeed panel area * front and rear emergency pushbutton * padlockable main switch * safety micro for overthickness * automatic emergency stop machine for: - sanding belt breaking - not-tensioned sanding belt - lateral outplacement of sanding belt - absence of compressed air - overload on main motor
1. 2.620 MM ABRASIVE BELT DEVELOPMENT FOR GREATER FINISHING AND PRODUCTIVITY
2. PHOTOCELL WITH “BACKGROUND SUPRESSION” SYSTEM TO GRANT ALWAYS THE EXACT CENTERING OF THE ABRASIVE BELT
3.INTERNAL CROSSBELT UNIT
Technical data
| S | S |
|---|---|
| Workingwidth mm | 1.350 mm |
| Min/max. workingthickness | 4-170 mm |
| Sandingbeltwidth | 1.370mm |
| Sandingbeltlength | 2.620mm |
| Cross sandingbeltwidth | 150mm |
| Cross sandingbeltlength | 5000mm |
| 1st unit motor power (driven by inverter) (kw/hp) | 15 (20) |
| 2nd/3rd unit motor power (kw/hp) | 11 (15) |
| Feedbeltmotorpower (kw/hp) | 0,6/1,3 (1,8/1,7) |
| Feedspeed (M/Min) | 4,5/9 |
