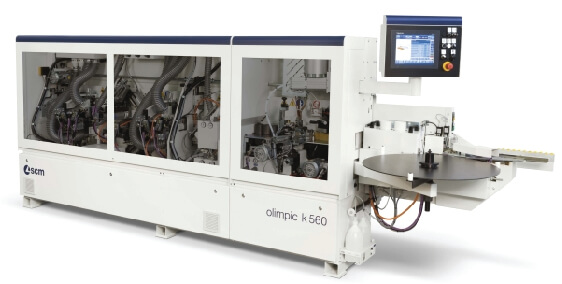

SCM K560

STANDARD MODELS : SCM K560 BRAND SCM , Italy

GENERAL FEATURES Automatic single-sided edge bander for the edge gluing with hot melt glue on straight panels, on the four panel sides, finishing and rounding-off of the panel corners

Base made of curved and welded steel plates to ensure a vibration free, highly rigid structure. Openings with shoots for the removal of shavings to the floor that are not collected by the dust extraction.

Top presser made of curved and welded steel plates and supported with steel columns. It provides a vibration free structure on which the operating groups are located. Two rows of high-adherence rubber panel pressure wheels on the track and mounted on bearings. An enclosure covers the wheels. Manual adjustment of presser at the machine's infeed with positioning numerical readout

Top operating groups fixed to the presser or mechanically connected on to it to allow the automatic positioning according to the panel thickness. Lower groups fixed to the horizontal beam for a precise reference with respect to the panel. All high frequency motors are equipped with static inverter.

1. 2 MOTORS ROUNDING UNIT: HIGH QUALITY MACHINING WITH THE SIMULTANEOUS ROUNDING AND EDGE TRIMMING OPERATION

2. “R-K” TRIMMING UNIT: RAPID MACHINING CHANGEOVER BETWEEN THIN, THICK AND SOLID WOOD EDGES THANKS TO THE 3 AUTOMATIC WORKING POSITIONS

3.“TOUCH 7” CONTROL UNIT: JUST A “TOUCH” TO USE THE MACHINE

Technical data

S S
Workingwidth mm 1.350 mm
Min/max. workingthickness 4-170 mm
Sandingbeltwidth 1.370mm
Sandingbeltlength 2.620mm
Cross sandingbeltwidth 150mm
Cross sandingbeltlength 5000mm
1st unit motor power (driven by inverter) (kw/hp) 15 (20)
2nd/3rd unit motor power (kw/hp) 11 (15)
Feedbeltmotorpower (kw/hp) 0,6/1,3 (1,8/1,7)
Feedspeed (M/Min) 4,5/9
