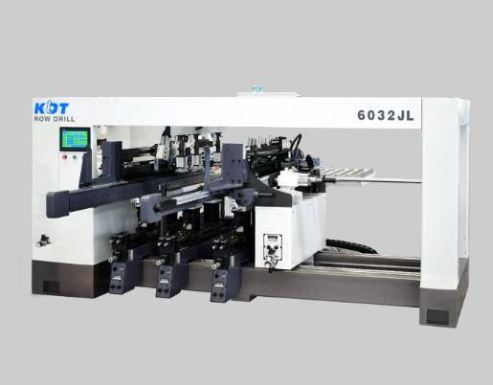

KDT 6032
An efficient and accurate automatic multi row drilling machine.Auto feeding&unloading, which is fast, accurate, time-saving and labor-saving. Three plates can be processed at the same time, which is more efficient. Vertical drill rows using quick release clutch, more convenient.
1.This unit includes 1-4 groups of vertical drill rows and 2 groups of horizontal drill rows, which can be combined freely;
2.Suitable for process of narrow panel, could drill in 3 sides at one process, which is faster and more efficient
3.Extended table and the processing length in X direction is increased to 1850mm
4. Three plates can be processed at the same time, more efficient;
5.Auto feeding & unloadingļ¼fast and accurate, time-saving and labor-saving;
Technical data
| S | S |
|---|---|
| PACKAGE SIZE(X Y Z) mm | 3450mm 1925mm 1720mm |
| GROSS WEIGHT(kg) | 2880 |
| POWER(kW) | 12.55 |
| Working Pressure(MPa) | 0.6-0.8 |
